Philip DFM100 M3543A / 989803196431 PADDLE
Ürün ayrıntıları:
| Menşe yeri: | Orijinal |
| Marka adı: | PHILIP |
| Model numarası: | DFM100 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | Negotiation, pls contact me |
| Ambalaj bilgileri: | Karton kutu |
| Teslim süresi: | Ödeme onaylandıktan sonra 1-2 iş günü içinde |
| Ödeme koşulları: | Banka havalesi, Western Union |
| Yetenek temini: | 10 |
|
Detay Bilgi |
|||
| PN: | M3543A / 989803196431 | Modeli: | DFM100 |
|---|---|---|---|
| Hisse senetleri: | Mevcut | PRICE: | NEGOTIABLE |
| Garanti: | Güneş Bahçe Işığı | Durum: | Yeni ve orijinal |
Ürün Açıklaması
Philip DFM100 M3543A / 989803196431 PADDLE
1. Model & Compatibility
- Paddle Part No.: M3543A / 989803196431
- Compatible Device: Philip Efficia DFM100, HS Intrepid
- Type: Reusable external adult / paediatric combination defibrillation paddles
2. Clinical Energy & Shock Waveform
- Adult mode (≥10 kg): Max shock energy 200J
- Paediatric mode (<10 kg): Automatic low energy output (≤50J)
- Waveform: Biphasic Truncated Exponential (BTE)
- Automatically adjust output by patient thoracic impedance
- Impedance detection range: 25 Ω – 250 Ω (external)
3. Structural & Functional Features

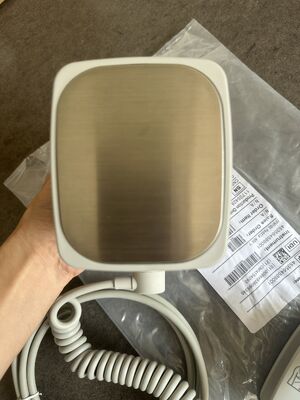

- Integrated dual-surface design: Adult large electrode surface + built-in paediatric small electrode surface

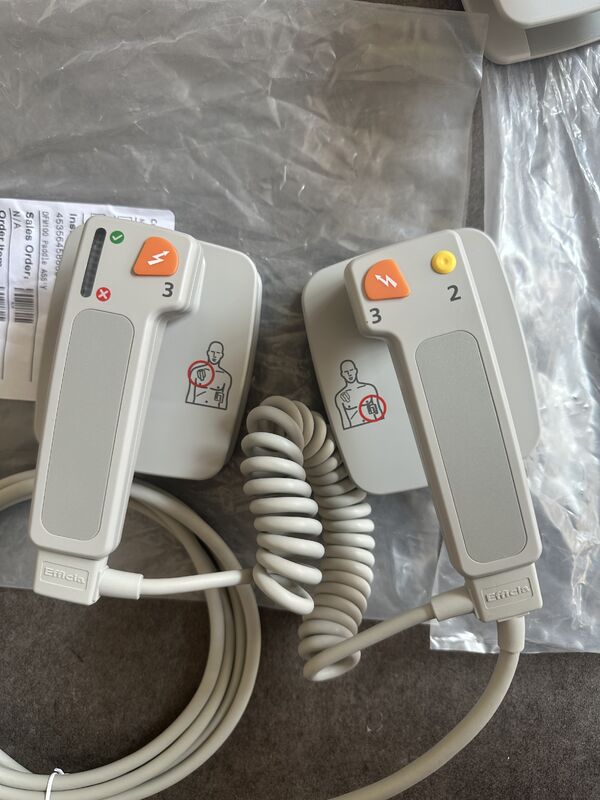

- Right sternum paddle: Equipped with PCI contact indicator light
Green = good skin contact; Orange / Red = poor contact
- Left apical paddle: With remote charge button
- Both paddles with orange synchronous shock discharge buttons
- Built-in 2-lead ECG acquisition for arrhythmia analysis
4. Electrical & Physical Parameters
- Sensing signal: 500nA RMS / 571Hz; 200μA RMS / 32kHz
- Safety classification: BF type, defibrillation-proof
- Cable length: Approx. 2.5 m
- Reusable & sterilizable
5. Disinfection Requirements
- High-temperature high-pressure sterilization: Up to 134°C
- Supported chemical disinfection and wipe disinfection
- Repeatedly autoclavable for clinical long-term use
Bu ürün hakkında daha fazla bilgi edinmek istiyorum
