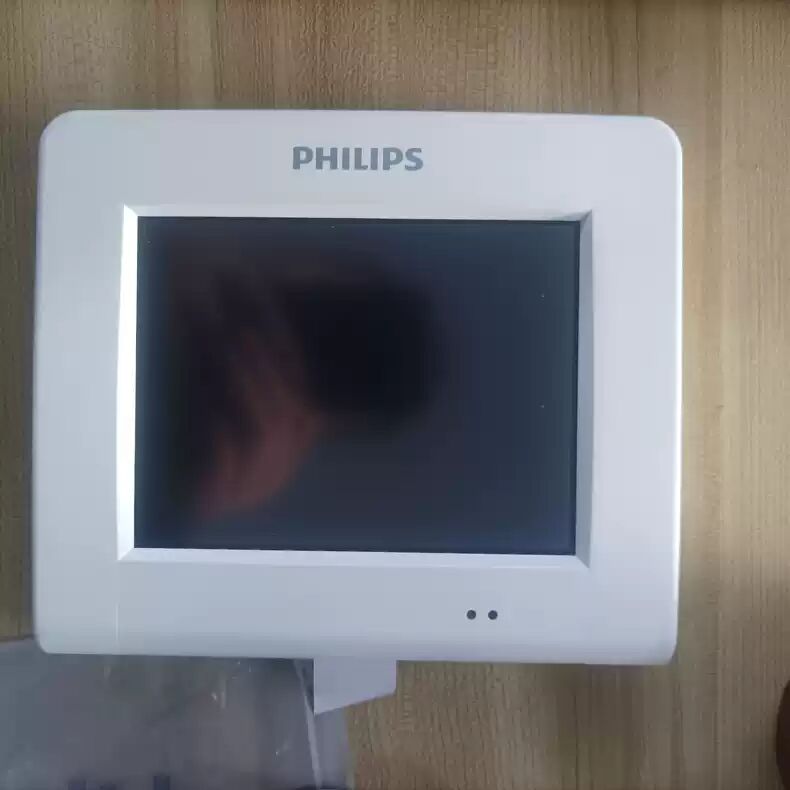

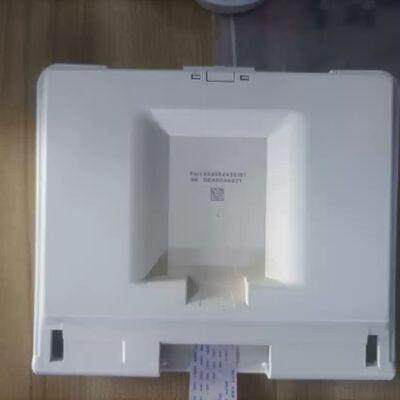

PN:453564150521 FM20 FM30 LCD SCREEN PART
Ürün ayrıntıları:
| Menşe yeri: | Orijinal |
| Marka adı: | PHILIP |
| Model numarası: | FM20 FM30 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | Negotiation, pls contact me |
| Ambalaj bilgileri: | Karton kutu |
| Teslim süresi: | Ödeme onaylandıktan sonra 1-2 iş günü içinde |
| Ödeme koşulları: | Banka havalesi, Western Union |
| Yetenek temini: | 10 |
|
Detay Bilgi |
|||
| Marka: | Philip. | Modeli: | FM20 FM30 |
|---|---|---|---|
| PN: | 453564150521 | Durum: | İyi |
| Garanti: | Güneş Bahçe Işığı | ||
Ürün Açıklaması
PN:453564150521 FM20 FM30 LCD SCREEN PART
Basic Information
Touch Screen: 4‑wire resistive touch panel
Integrated Parts: LCD panel + touchscreen + backlight inverter + display adapter board (M2703‑66440)
Main Connection: 50‑pin ribbon cable to recorder adapter board (M2703‑66430)
Interface: 5‑wire touch connector; standard power/signal cables
Mounting: Original housing fit, direct replacement
Functions
Primary user interface for FM20/FM30
Displays fetal/maternal vital signs, waveforms, and NST traces
Touchscreen for monitor operation and data input
Enables integration with OB TraceVue / IntelliSpace Perinatal systems
Physical & Electrical
Color: White bezel (matches FM20/FM30 chassis)
Condition: New / refurbished available; 90‑day warranty typical
Application: Hospital / clinical obstetric monitoring environments
- Part Number: 453564150521 (also referenced as 453564435191)
- Device Compatibility: Philip Avalon FM20 / FM30 Fetal Monitors
- Type: Complete LCD & Touch Screen Assembly (5‑wire)
