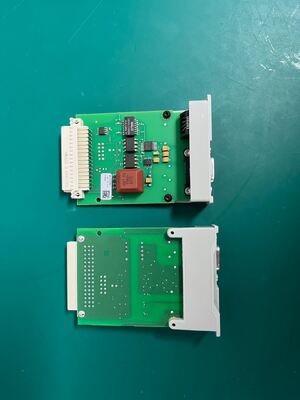

M2703-67001 AVALON FETAL LAND CARD
Ürün ayrıntıları:
| Menşe yeri: | Orijinal |
| Marka adı: | PHILIP |
| Model numarası: | M2703-67001 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | Negotiation, pls contact me |
| Ambalaj bilgileri: | Karton Kutu |
| Teslim süresi: | Ödeme onaylandıktan sonra 1-2 iş günü içinde |
| Ödeme koşulları: | Banka havalesi, Western Union |
| Yetenek temini: | 10 |
|
Detay Bilgi |
|||
| Modeli: | FM20 FM30 | PN: | M2703-67001 |
|---|---|---|---|
| Hisse senetleri: | Mevcut | Garanti: | 6 Ay |
| Paket: | karton | ||
| Vurgulamak: | Avalon fetal monitor card,Fetal monitor replacement part,M2703-67001 fetal land card |
||
Ürün Açıklaması

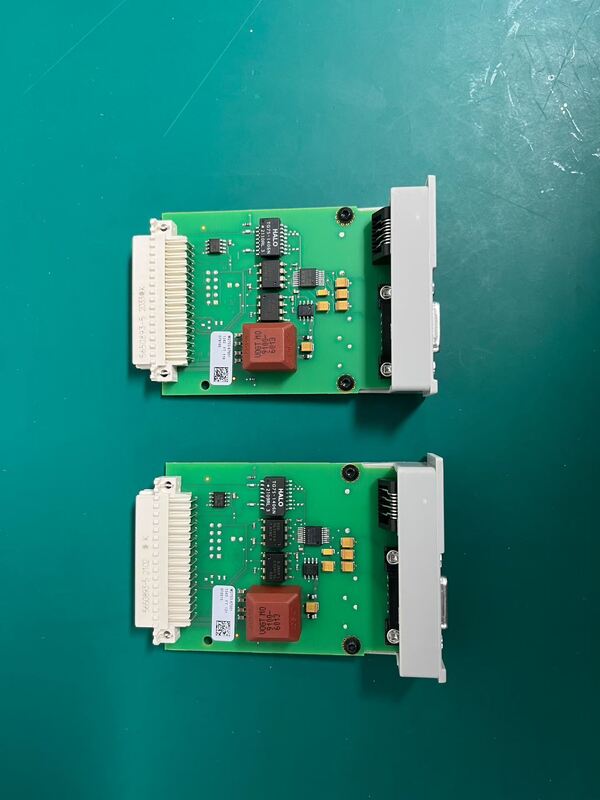

Avalon FM20 / FM30 Network Card Specifications
1. Part Information
- Network Card Part No.: M2703-67001
- Alternative No.: 9001-18481C00A
- Hardware Type: Built-in PCI expansion card
- Applicable Models: Philip Avalon FM20 (M2702A), FM30 (M2703A)
2. Ethernet Specifications
- Interface: RJ45 port
- Speed: 10/100 Mbps auto-negotiation
- Network Protocol: TCP/IP (IPv4), DHCP / BOOTP
- Standard Compliance: IEEE P1073 Medical Information Bus (MIB)
- Transmission Mode: Unicast / Broadcast
- System Compatibility: Supports connection with OB TraceVue and IntelliSpace Perinatal system
3. Network Configuration
- IP Assignment: Default DHCP/BOOTP automatic acquisition; static IP configurable manually
- Network Requirement: Monitor and server PC must be in the same network segment
- Communication Port: LAN for perinatal system data transmission; RS232 reserved for EMR read-only access
4. Environmental & Certification
- Operating Temperature: 0–45 °C (without battery); 0–40 °C (with battery)
- Storage Temperature: −20–60 °C
- Humidity: 10%–95% non-condensing
- Certification: CE, FDA, ISO 13485
5. Main Functions
- Transmit real-time FHR, TOCO, maternal ECG waveforms and numerical data
- Support central monitoring station remote viewing, data storage and report printing
- Hospital system integration with HIS / EMR for medical data sharing
